My Equipment

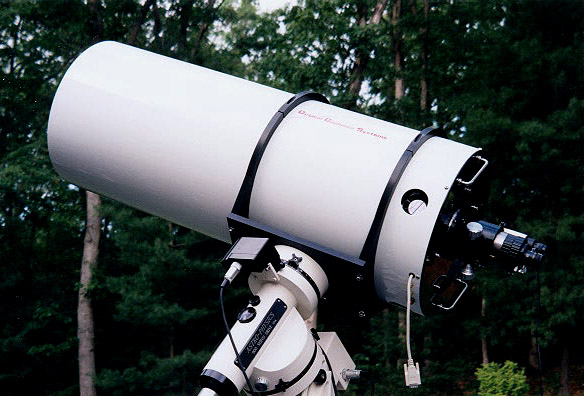

12.5" F9 Ritchey-Chretien Cassegrain made by Optical Guidance Systems







FSQ 106, 4 element flourite Apochromat







300mm F2.8 Nikon Lens



The Mandel Widefield Adapter

Image courtesy of Steve Mandel

Click here to go to Steve's Widefield Adapter Page

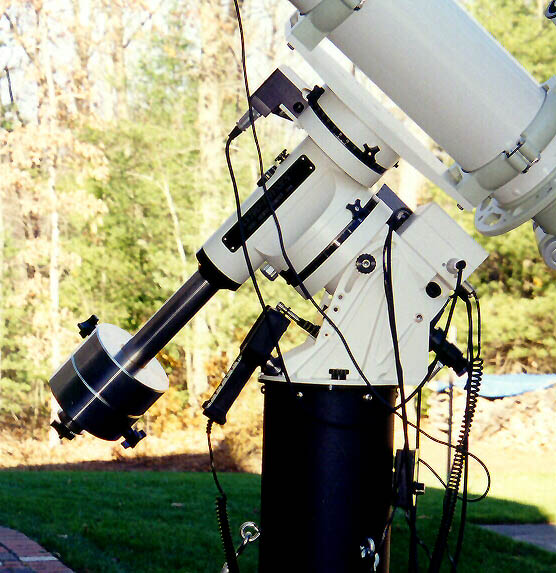

AP1200 Mount

 ST10XME CCD Camera

Santa Barbara Instrument Group

    • Pixel size: 6.8um
    • Bin 2:1, 3:1
    • Detector size: 14.85 x 10.0mm
    • A/D 16bit
    • Read noise:15e-
    • Dark current: 0.5e-/s
    • Full well: 40Ke-
    • Self guiding
    • Electromechanical shutter

IMG1024S Camera

Finger Lakes Instruments

  • TK1024 array, back thinned
  • Ave QE = 85%/85%/75% RGB
  • Pixel size: 24um.
  • Array size: 24.6mm x 24.6mm
  • A/D 16 bit
  • Ave noise 7e- RMS
  • Full well capacity: 150K
  • Dark Current:30e-/pixel/sec at -15C.
